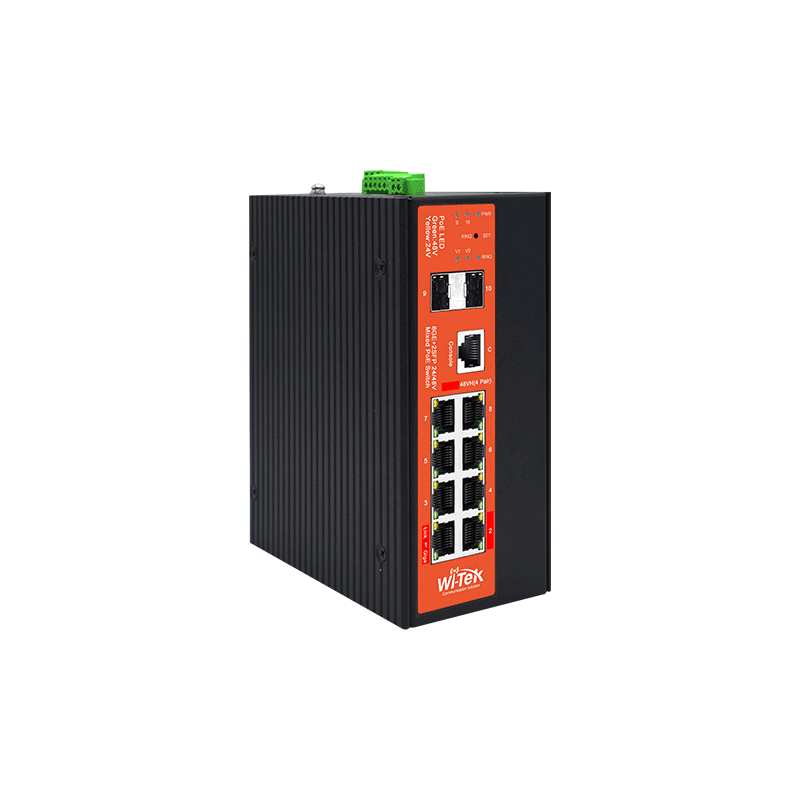

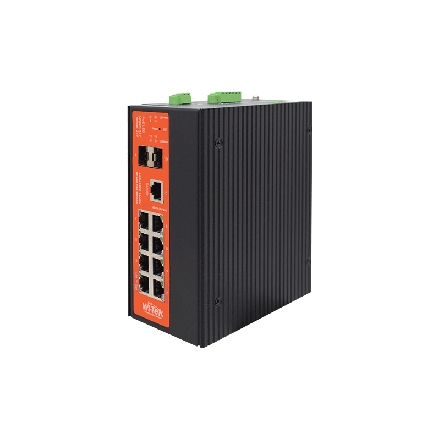

WI-PMS310GF-Alien 24-48V pārvaldīts komutators, 8x1Gbps PoE, 2xSFP, 150W

Cenna: 196,00 €
Produkta numurs: 0-0913-094-000102
Ražotājs: WI-TEK WI-TEK
Kategorija PoE tīkla slēdži
196 EUR
Tikai daži eksemplāri ir noliktavā - pasūtiet ātri!
Daudzums:
minus plus
Daudzums:
- +

● 8 10/100/1000Mbps RJ45 PoE Ports

● 2 100/1000Mbps SFP Slots

● Industrial layer 2 managed PoE switch

● Auto detect 48V 802.3af/at or 24v passive PoE

● DC Input 18-57V, works with solar power

● -40℃~80℃ working temperature


Product Specification:

Dimensions 216 x 140 x 54 mm

Interfaces: (8) 10/100/1000Mbps (24/48V PoE Adjustable)

Networking: (2) SFP Gigabit Ports

Fan: Fanless

Power Consumption: 150W (max. with PoE device connected), 10W (Without PoE output)

External Power Supply: AC 110~240V 50/60 Hz; DC 48-55V 5A Max

PoE Ports (RJ45): Port1-8: 802.3af/at PoE or 24 V Passive PoE

Bandwidth: 20Gbps

Mac Address Table: 8K

Packet Forwarding Rate: 14.9Mpps

Protection Level Lightning protection: 6KV, 6KV ESD Contact discharge

Operating Temperature: -10 to 55° C

Certifications: CE, FCC, RoHS

Software Features:

QoS: Support 802.1p CoS/DSCP priority Support 4 priority queues

L2 Features:  IGMP Snooping V1/V2/V3 802.3ad LACP (up to 8 groups); Spanning Tree STP/RSTP/MSTP; Port Isolation

VLAN: Supports up to 4K VLANs; Port/ MAC/Protocol-based VLAN; VLAN de gestión

Access Control List: L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol, and VLAN ID

Security: IP-MAC-Port-VID Binding; IEEE 802.1X Port/MAC Based Authentication, Radius, Guest VLAN; SSH v1/v2

Management: Web-based GUI and CLI management; SNMP v1/v2c/v3, compatible with public MIBs

DHCP/BOOTP Client,DHCP Snooping,DHCP Option82; CPU Monitoring; Port Mirroring

Others:

Package Contents: PoE Switch; Electric Line; Guide Book/Warranty Card
