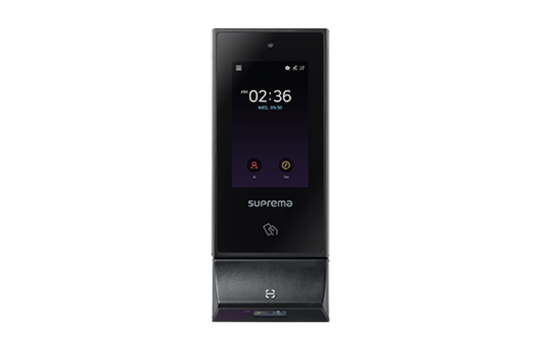

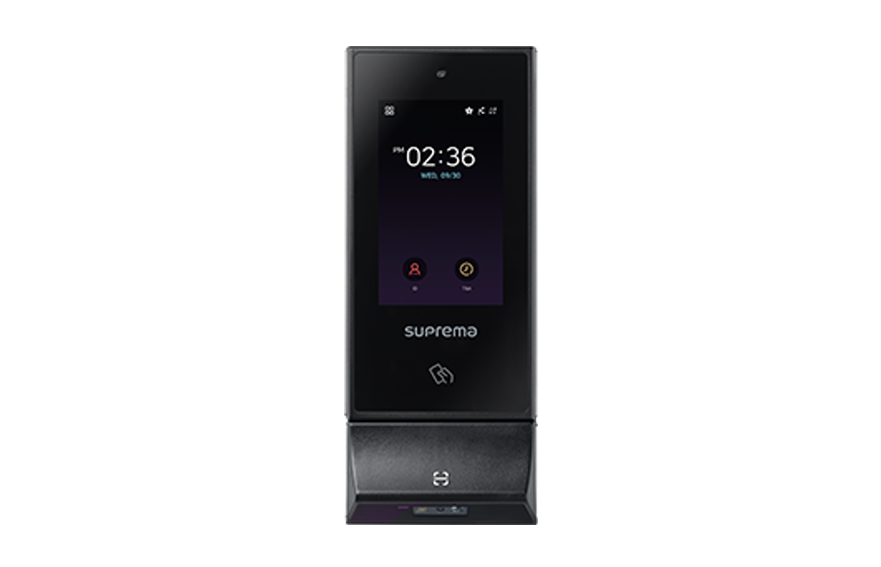

XS2-QDPB X-Station 2 terminal QR, 125kHz, Mifare / Desfire, NFC, BLE, PoE, IP65
Suprema X-Station 2 is a versatile intelligent terminal that supports different credentials, such as QR codes, Mobile Access, RFID cards and fingerprints, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4" wide touchscreen, and IP65 rating.
Main features:
- RF option: 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa
- Mobile card NFC, BLE
- QR/Barcode: Supported
- CPU: 1.5 GHz Quad Core
- Memory 16 GB Flash + 1 GB RAM
- User: 500.000
- LCD: 4" IPS color LCD / 480 x 800 pixels
- Camera: CMOS 2M pixels / 1600 x 1200
- 10/100 Mbps Ethernet, auto MDI / MDI-X
- 1 ch host slave RS-485
- Wiegand 1ch input or Output
- TTL 2 ch Inputs
- 1 Relay
- USB 2 (Host)
- PoE IEEE 802.3af compliant
- Degree of protection: IP65
- Power: DC 12 V (Max. 0.8 A) or DC 24 V (Max. 0.45 A)
More information and user manuals can be found in the "Downloads" section.
