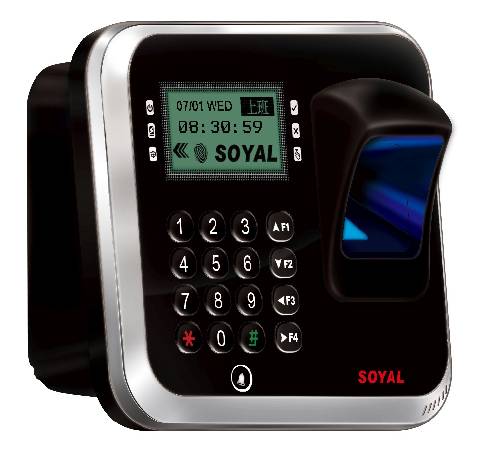

Standalone / networked fingerprint reader with keyboard and card reader;
Activation Method - Fingerprint / Fingerprint + Card / Fingerprint + PIN / Fingerprint + Card + PIN / Card / PIN
Scans 125 kHz EM standard and Mifare 13.56MHz cards;
Power supply DC 10-24V <5W;
RS-485 ports;
Integrated LAN port;
16,000 card users;
32,000 event memory;
Port for additional connection of a Wiegand 26/34 format scanner;
Card reading distance 2 - 15 cm .;
Connecting two exit buttons;
Connection of two-door position sensors;
Relay door opening output (NO, NC), DC 24V 1A;
Transistor door opener 12V / 100mA for second door control;
Door opening time 0.1-600 sec.
Alarm time 0.1-600 sec.
Tamper switch (NO, NC), DC 24V / AC 125V 1A;
Sound indicator;
6 LED indicators;
Illuminated keyboard;
Call button;
4-line LCD display (128x64 pixels, 16 characters per line);
Elevator control (64 floors, 16,000 users);
Optical fingerprint scanning sensor;
Probability of erroneous scan <0.1%;
Recognition time 750ms;
1500 print capacity (500 users);
256-bit encoding;
Protection class IP65;
Operating temperature 0°C ~ + 60°C;
Dimensions: 128 x 147 x 66mm.
| Manufacturer | SOYAL |
| IP standard | IP65 |
