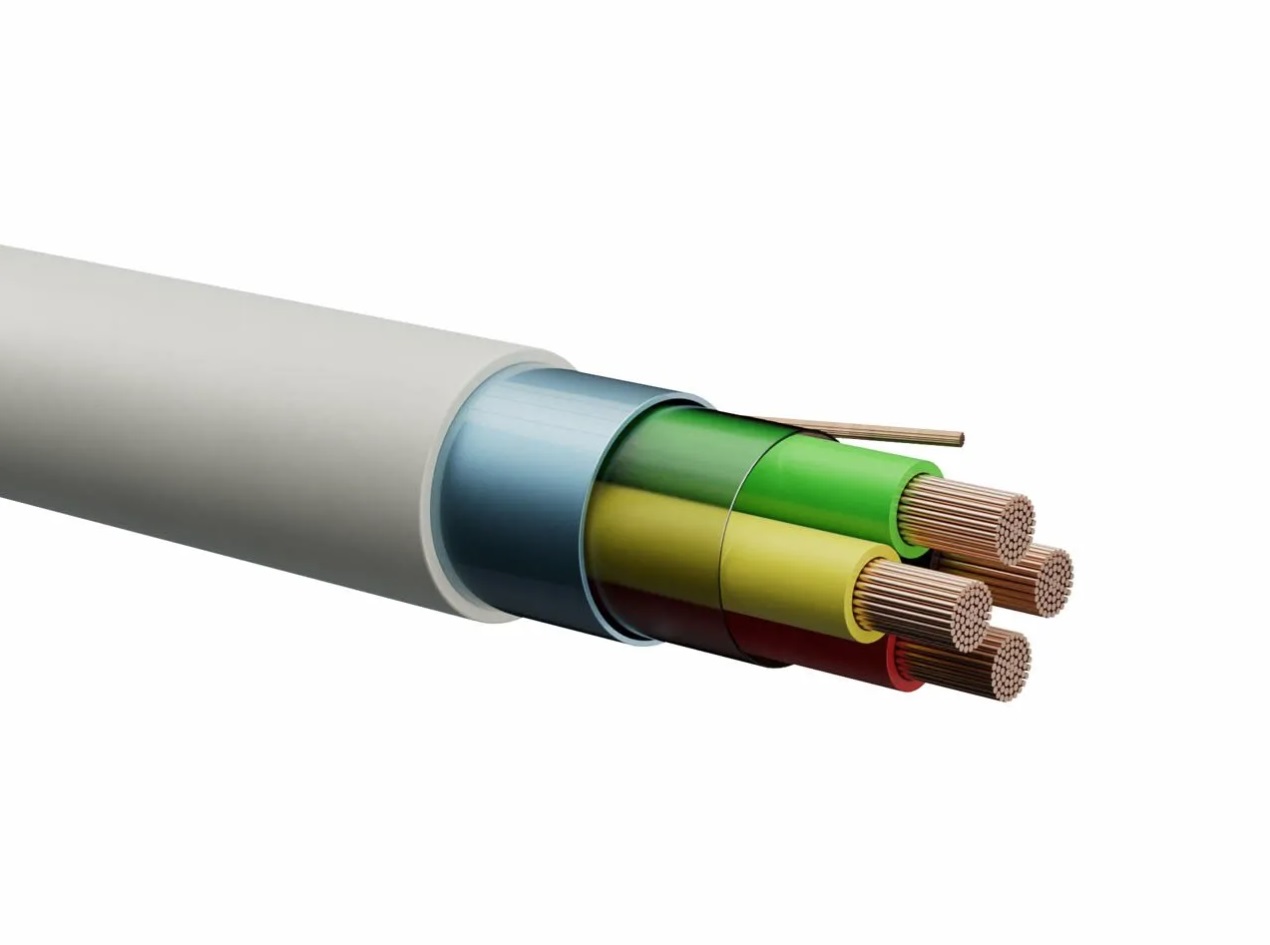

Berica 4x0,22mm² Alarm Cable, Screened
Cca-s3,d0,a3
For fixed indoor installation in dry or wet environments and temporarily outdoor. They can be installed in cable trays, pipes, conduits, and similar systems. They can be laid together with power cables with marking both 450/750V and 0.6/1 kV used for systems with a nominal voltage to ground (Uo) up to 400 V.
Technical specifications:
- Conductors: annealed red copper CEI EN 60228 (Table 9)
- Insulation : PVC CEI EN 50363
- Assembling: Pet tape
- Drain wire: annealed red copper, 7x
- Screen: Al/Pet tape
- Stripping wire: Pet
- Sheath: PVC CEI EN 50363
- Sheath colour : white RAL 9010
- Low halogens emission: (<22%) CEI EN 50267-2-1 - IEC 60754-1
- DC resistance: CEI EN 60228 (Table 9)
- Testing voltage : 2000 V
- Max working temperature : 70 °C
- Short-circuit temperature : 160 °C
- Min. installation temperature : 0 °C
- Bending radius : Ø x 8
| Manufacturer | BERICA |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
