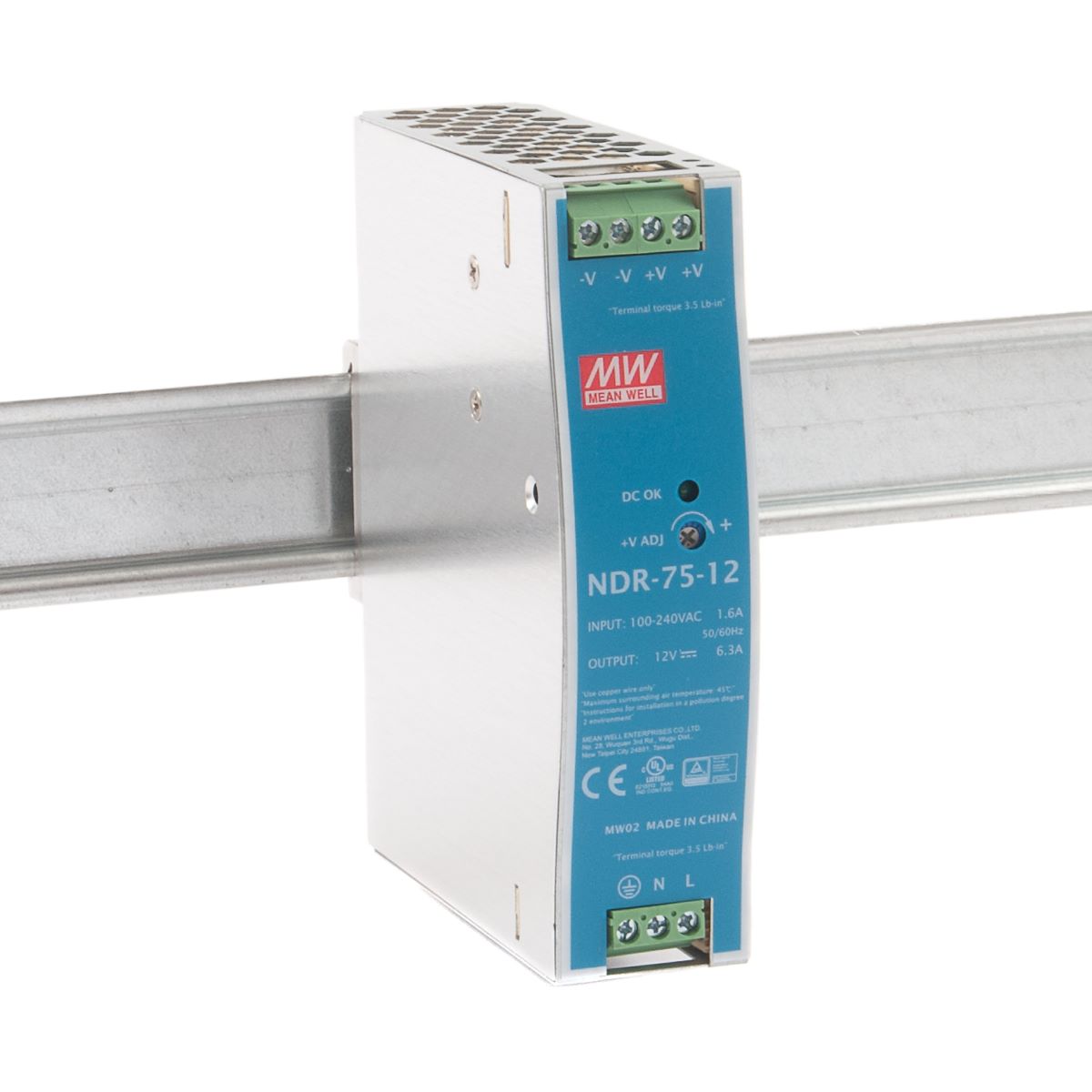

NDR-75-12 12V 6,2A maitinimo šaltinis, montuojamas ant DIN bėgelio, MeanWell

Add to wish list

Print this page

This item is not on stock and has to be re-ordered.

Quantity:

Quantity:

- +

NDR-75 is one economical slim 75W Din rail power supplyseries, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails.

Features:

Output Voltage: 12V
Rated Current: 6.3A
Rated Power: 75.6W
Voltage Adjustment Range: 12 ~ 14V
Ripple & Noise (max.): 80mVp-p
Efficiency (Typ.): 85,5%
Over Voltage Protection: 14 ~ 17V (Shut down o/p voltage, re-power on to recover)
Overload Protection: 105 ~ 130% rated output power (Constant current limiting, recovers automatically after fault condition is removed)

You can find more information in "Downloads" section.
