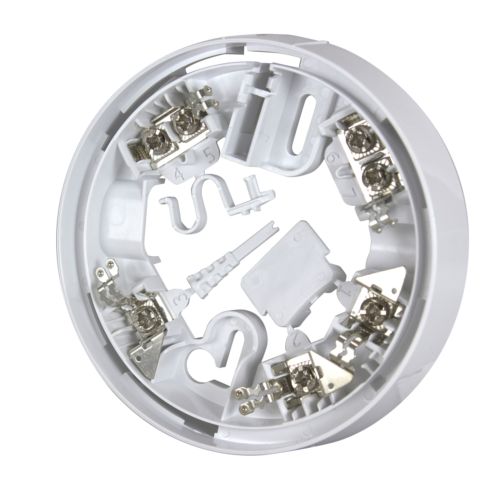

CA408 CAST Detector Base
| Approvals/certifications | Certified to the relevant parts of EN54 by the LPCB as part of our CAST fire detector certifications. |
| Supply wiring | 2-wire monitored, polarity sensitive. |
| Connections | (1) +V In, analogue switch; (2) +V Out, analogue switch; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable. |
| Product dimensions (mm) | 102.2mm diameter x 20.5mm deep. |
| Construction & finish | White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers. |
| IP Rating | IP42. |
| Weight | 55g. |
| Manufacturer | C-TEC |
| In stock | Yes |
| IP standard | IP42 |
