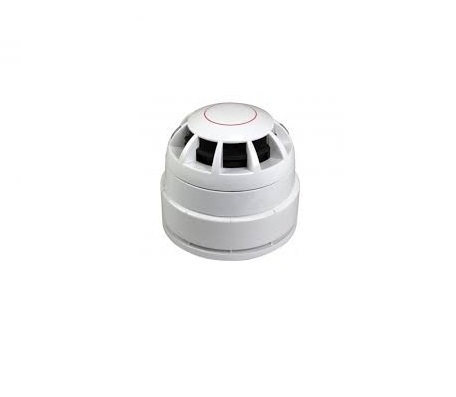

CA431A/W CAST address siren, sensor base mounted, white, with isolator

Add to wish list

Print this page

Ready for shipping

Quantity:

Quantity:

- +

Approvals/certifications	Certified to EN54-3 & 17 by the LPCB.
Protocol/compatibility	Compatible with C-TEC's CAST protocol Addressable Fire Panels.
Application/operation	Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Sounder/Detector Base combination.
Supply/operating voltage	27 to 40V DC.
Quiescent current	460µA @ 35V DC.
Nominal SPL (Sound Pressure Level)	92dB(A) when set to tone 1.
Alarm current	5.5mA (Sounder on max).
Indicators	Polling (red LED).
Product dimensions (mm)	122mm diameter x 46mm deep (not including optional CAST detector and base).
IP Rating	IP21C (Type A).
Weight	170g.
Operating conditions/temperature	-10ºC to +55ºC. Max. 95% RH (Non-condensing).

Manufacturer	C-TEC
In stock	Yes

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

Approvals/certifications	Certified to EN54-3 & 17 by the LPCB.
Protocol/compatibility	Compatible with C-TEC's CAST protocol Addressable Fire Panels.
Application/operation	Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Sounder/Detector Base combination.
Supply/operating voltage	27 to 40V DC.
Quiescent current	460µA @ 35V DC.
Nominal SPL (Sound Pressure Level)	92dB(A) when set to tone 1.
Alarm current	5.5mA (Sounder on max).
Indicators	Polling (red LED).
Product dimensions (mm)	122mm diameter x 46mm deep (not including optional CAST detector and base).
IP Rating	IP21C (Type A).
Weight	170g.
Operating conditions/temperature	-10ºC to +55ºC. Max. 95% RH (Non-condensing).

Manufacturer	C-TEC
In stock	Yes

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

Description
