| Approvals/certifications | Certified to EN54-3, 23 & 17 by the LPCB. |
| Protocol/compatibility | Compatible with C-TEC's CAST protocol Addressable Fire Panels. |

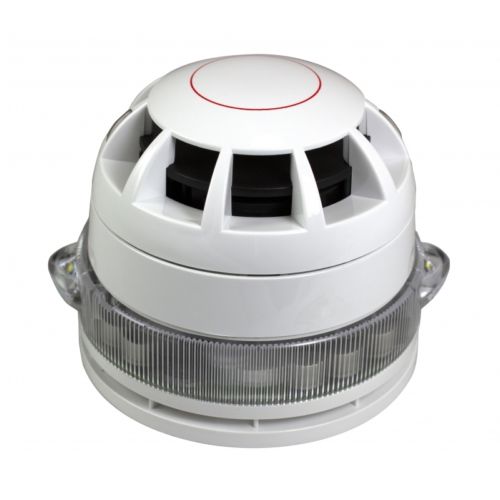

| Application/operation | Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Sounder/VAD/Detector Base combination. |
| VAD category & coverage | C-3-8.5 |
| Flash rate & colour | 0.5Hz / White. |
| Supply/operating voltage | 27 to 40V DC. |
| Quiescent current | 460µA @ 35V DC. |
| Nominal SPL (Sound Pressure Level) | 92dB(A) when set to tone 1. |
| Alarm current | 12.5mA (VAD lit, Sounder on max). |
| Indicators | Polling (red LED). |
| Product dimensions (mm) | 122mm diameter x 46mm deep (not including optional CAST detector and base). |
| IP Rating | IP21C (Type A). |
| Weight | 170g. |
| Operating conditions/temperature | -10ºC to +55ºC. Max. 95% RH (Non-condensing). |
| Manufacturer | C-TEC |
| In stock | Yes |
