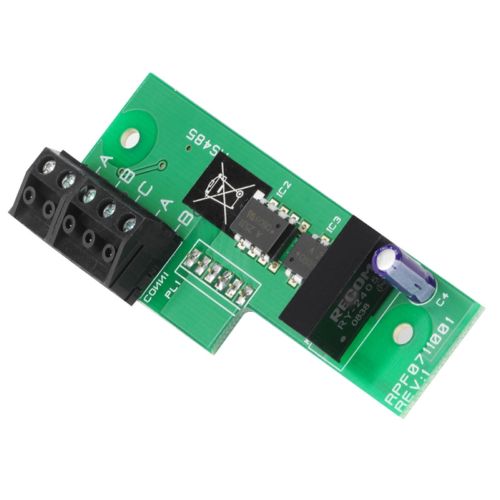

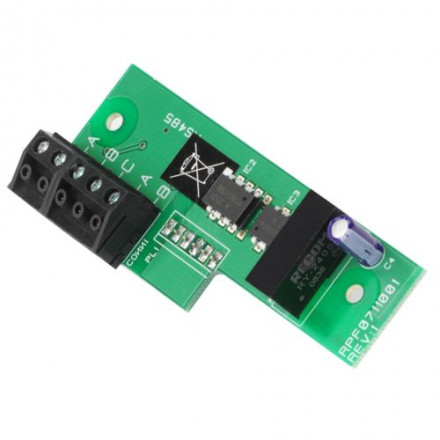

Can be used to connect up to 8 XFP main panels (any mix) over a two-wire RS485 network of up to 1KM in length.
Each networked XFP can be programmed to accept Fires, Faults and
Control actions such as Silence Alarm Sounders and Control Panel Resets
from other panels.
Each XFP will accept Disablement commands for zones, sounders and output sets from other panels.
All panels monitored for network wiring faults.
Fires and faults on remote panels are displayed on local panels including the point description.
C&Es can be programmed into local panels dependent on which remote panel is in alarm.
The network supports the programming of site data into remote panels from a PC at a local panel.
Time and date is common to all panels.
All networked main panels require a network communication card.
Product dimensions (mm) - 31 W x 80 H x 22 D mm.
| Manufacturer | C-TEC |
| In stock | Yes |
| Zones | 32 |
