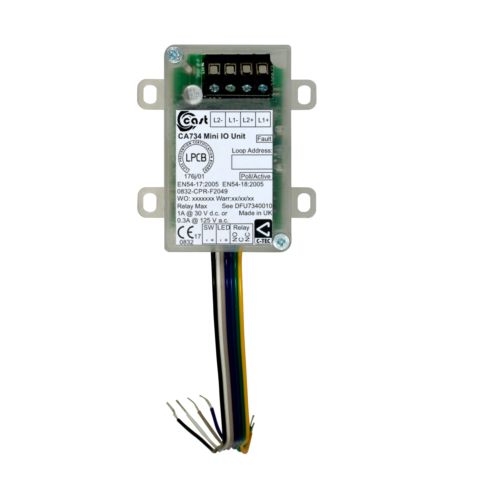

| Approvals/certifications | LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13 |
| Compatibility | Compatible with C-TEC's XFP/ZFP CAST Addressable Fire Panels. |
| Supply/operating voltage | 22 to 40V DC. |
| Quiescent current | 1mA typical. |
| Activation current | 7mA @ 22 to 40V DC.. |
| Auxiliary relays | One volt-free single pole changeover relay rated at 1A @ 30V DC (or 0.3A @ 125V AC). Non-monitored. Clean contact. |
| Auxiliary inputs | One monitored input that can be set to operate as: (1) a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally-open switch, triggered by a 470R. |
| Indicators | Single Red (Relay Active & Polling); Single Yellow (Monitored Input Fault). |
| Product dimensions (mm) | 65 W x 65H x 20 D mm (excluding terminal block & ribbon cable). Ribbon cable is 150 mm length. |
| Construction & finish | Clear ABS polycarbonate enclosure. |
| IP Rating | IP40. |
| Weight | 47g. |
| Operating conditions/temperature | -10ºC to +55ºC. |
| Manufacturer | C-TEC |
| In stock | Yes |
| IP standard | IP40 |
