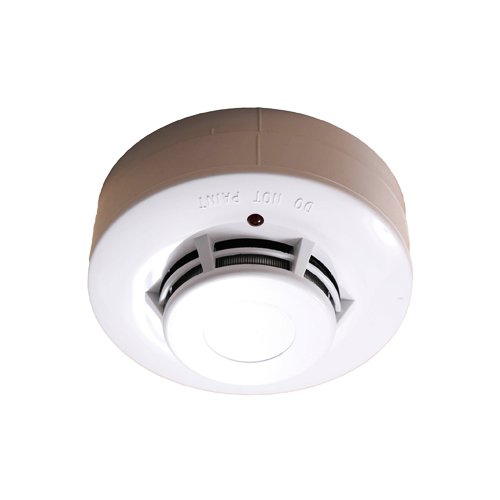

- 2-wire optical smoke detector with remote LED indicator output
- Advanced photoelectric smoke sensing technology
- Multisensor is used for a wide range of applications and is highly immune to false alarms
- Durable sensor head
- Power supply 12-28VDC
- Excellent smoke access
- Dual LEDs for 360
| Power supply | 24V |
| Smoke Sensitivity | EN 54-5/7:2000 standard |
| Ceiling Spacing | 50 foot rating for heat sensor |
| Start-Up Current | 70 mA Maximum |
| Alarm Impedance | for 2-wire models: 100£[+3V max; 560£[+3V max (red LED open circuit) |
| Reset Voltage | less than 1 volt |
| Reset Time | less than 1 second |
| Alarm Indicator | continuously emitting red light |
| Temperature range | -10°C to 50°C |
| Remote Output | 15 mA max., diode gate |
| Permissible current | 80mA maximum |
| Humidity | 0 to 95% RH, no condensation |
| Alarm Contact | (for 4-wire) NO or NC Operation |
| Form A | 1.0A@30VDC/0.5A@125VAC |
| Dimensions | 10mm (D) x 46mm (H) with base |
| Weight | 130g/set with base |
| Manufacturer | Everday |
