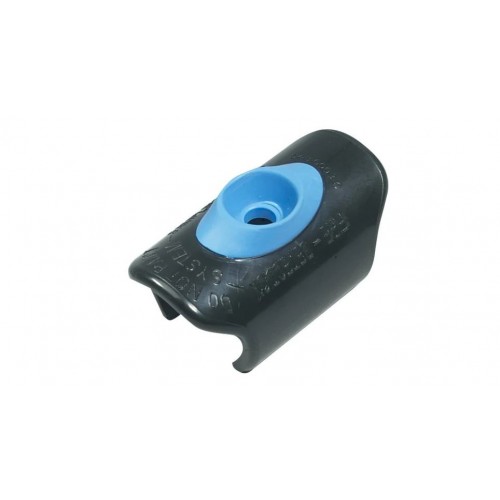

A standard clip for aspirating holes 6.0mm in the colour blue.
When installing an Aspirating Smoke Detection (ASD) system, it is often almost impossible to identify the exact location of the sampling point and more importantly, identify if the sampling hole is the correct size, creating unnecessary delays.
The VESDA Sampling Hole Clip delivers reliable and accurate sampling hole sizes that are fast to install and easy to locate and identify. Each clip is colour-coded to indicate a specific hole diameter providing an instant visual guide and removing the need for closer inspection.
This is particularly beneficial during commissioning and maintenance processes in applications like warehouses or large open spaces. The greatly simplified installation process helps deliver greater reliability in the correct setting of sampling hole size and a faster installation process. A 10mm (27/64”) diameter drill bit is all that is required by an installer to create each sampling hole (rather than many different drill sizes) to which the Sampling Hole Clip attaches to.
This can help deliver quality installation in projects where installation is subcontracted or the installer is not familiar with the impact of sampling hole size. The use of a chamfered hole entry in the sampling hole clip design can help to reduce dust loading effects.
Without using this type of technology, a build-up of dust around a standard drilled sampling hole is likely to occur, due to the friction created by the airflow through the sampling hole. By reducing dust loading effects and leveraging the additional protection provided by the pipe clips, sites can help increase system uptime and potentially extend service and testing intervals.
Unlike most contemporary solutions, the pipe clip is installation-ready (with no need for assembly, any additional parts or tools); clips are provided as a single ready-to-fit piece.
The pipe clips are also available in two formats; Standard and Harsh Environment. Harsh Environment Clip variants feature a flexi-lip design that changes its shape when subjected to compressed air.
This helps any ice, fiber or dust build-up on the supporting rubber structure be easily detached and broken up by the air Jetstream out of the clip hole, providing additional protection in challenging locations like freezer applications.
Key Features:
- Pre-engineered sampling holes for faster, more efficient commissioning and installation
- Installation-ready design (with no part assembly or tools required); simply clicks into place for a firm, non-slip position
- A visual colour-coded guide to sampling point location and the sampling hole size
- Greatly simplifies sampling hole drilling; a single 10mm drill bit for all holes (simply fit the relevant clip to set the hole size)
- Reduces dust loading effects through the inclusion of a chamfered hole entry design, helping to increase uptime and potentially extends test intervals
- Two formats are available: Standard and Harsh Environment
- Harsh Environment Clip variants feature a flexi-lip design to help reduce sampling hole contamination under high air pressure
| Manufacturer | SYSTEM SENSOR |
