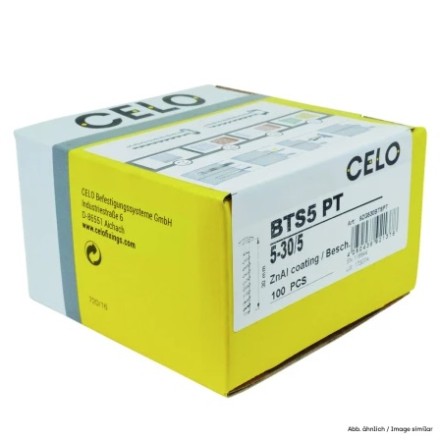

TX25 screw for concrete 5x30, E90, 100 pcs/pack, CELO

Price: 23,33 €
Product number: 0-1131-999-000190
Category Clamps
23.33 EUR
This item is not on stock and has to be re-ordered.
Quantity:
minus plus
Quantity:
- +

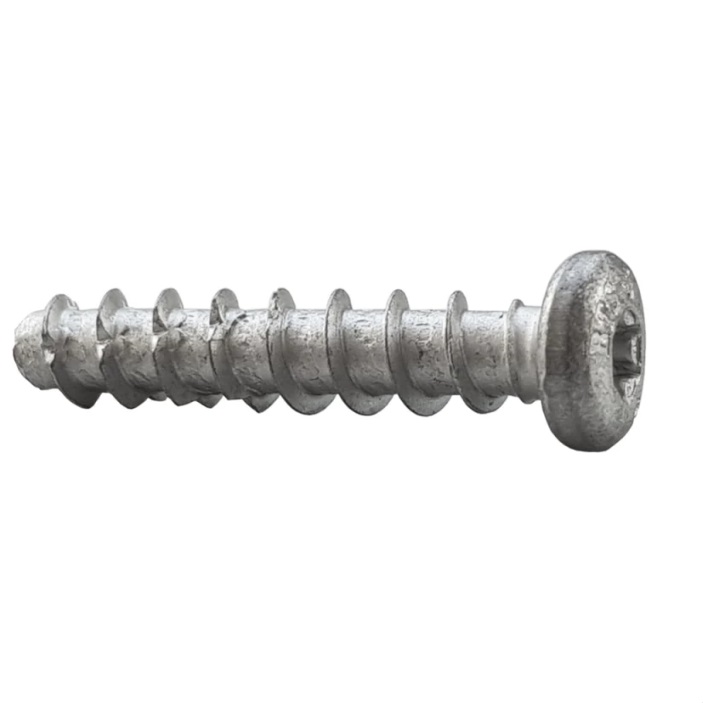

Concrete screw BTS PT 5-30/5, Pan head TX25, zinc flake coating

The concrete screw BTS5 PT 5-30/5 with pan head (TX 25. Kopf-Ø: 10 mm) is perfectly suited for a direct and fast fastening in different base materials. Due to the small drill hole of only 5 mm and the low setting depth of only 25 mm, a very low screw-in force is required. It is even possible to install it manually without a screwdriver. The small concrete screw even holds loads of up to 80 kg in concrete. The zinc flake coating provides high corrosion protection. The BTS5 is well suited for electrical and sanitary fixings.

Key features:

  • Direct and fast fixing
  • Small pre-drill with 5mm drill bit
  • Manual installation without battery screwdriver
  • Suitable for fixing the metal clips F and DF
  • Tested according to DIN 4102-12 (functional integrity)
  • Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)

Base materials:

  • Concrete
  • Solid brick
  • Solid sand-lime brick
  • Hollow brick
  • Natural stone

More information and user manuals can be found in the "Downloads" section.
