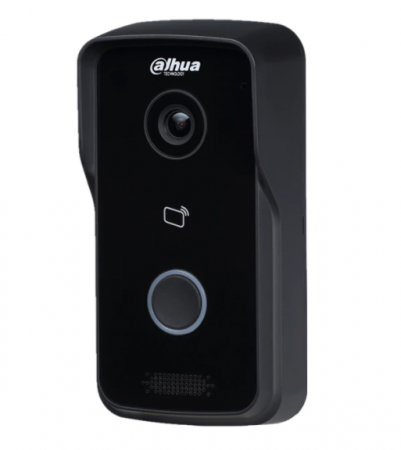

High definition camera; WDR
Operating temperature -30°C–60°C
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks
Specification:
Main Processor: Embedded processor
Operating System: Embedded LINUX operating system
Button Type: Mechanical
Interoperability: ONVIF
Internet Protocol: SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Baisc
Camera: 1/4" 1MP CMOS high definition, low illumination/WDR, color/IR
Angle of View: Horizontal: 107°; vertical: 61°; diagonal: 122°
WDR: 120dB
Noise Reduction: 3D noise reduction
Video Compression: H.264
Video Resolution: Main stream: WVGA, 720P, D1
Sub stream: CIF, WVGA, QVGA, 1080P, D1
Frame Rate: PAL: 25 fps NTSC: 30 fps
Video Bit Rate: 256K to 4M
Light Compensation: Auto IR
D/N: ICR auto switch
Audio Compression: G.711a; G.711u; PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way voice call
Audio Enhancement: Echo suppression and cancellation/digital noise reduction
Audio Bit Rate: 16KHz, 16Bit
Function
Communication: Full digital
Unlock Mode: Card/App remote/indoor monitor unlock
Card Type: IC card
Motion Detection: Video motion detection
Auto Snapshot: Auto snapshot can only be enabled on indoor monitors
Leave Photos and Messages: Yes (Insert an SD card into the indoor monitor.)
Web Configuration: Yes
Performance
Card Reading Distance: 3cm–5cm
Casing: PC+Acrylic
Capacity
Card: 10,000
Port
RS-485: 1
Electric Lock: 1
Exit Button: 1
Door Status Detection: 1
Lock Control: 1, normally closed by default
Network: 1 10Mbps/100Mbps network port (8-core white ribbon cable)
Alarm
Tamper: Yes
General
Color: Black
Power Supply Mode: 12V DC 1A Standard PoE:
Installation: Surface mount
Certifications: CE FCC UL
Accessory: Brackets and alarm ribbon cable
Dimensions: 135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")
Protection Grade: IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature: -30°C to +60°C (-20°F to +60°F )
Operating Humidity: 10%RH–90%RH (non-condensing)
Operating Altitude: Beneath 3000 m (9842.52 ft)
Power Consumption: Standby≤1W, working≤5W
Gross Weight: 326 g (0.72 lb)
| Manufacturer | DAHUA |
| IP standard | IP65 |
