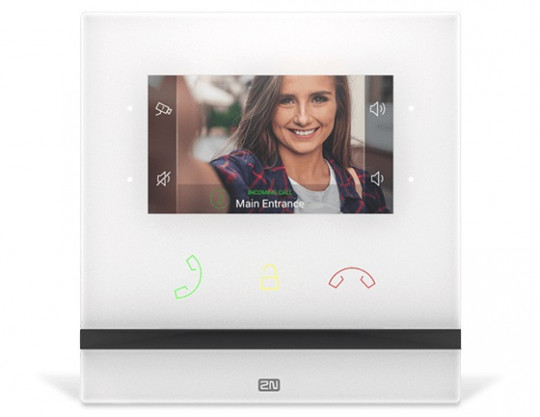

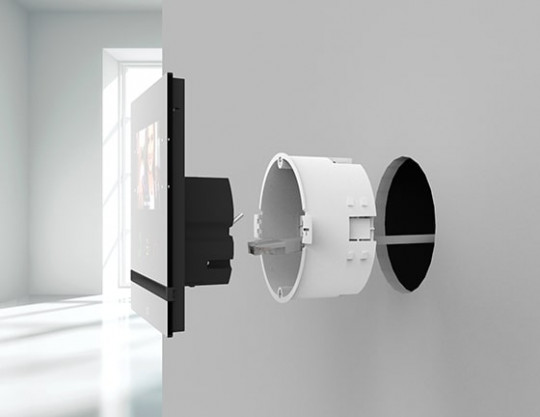

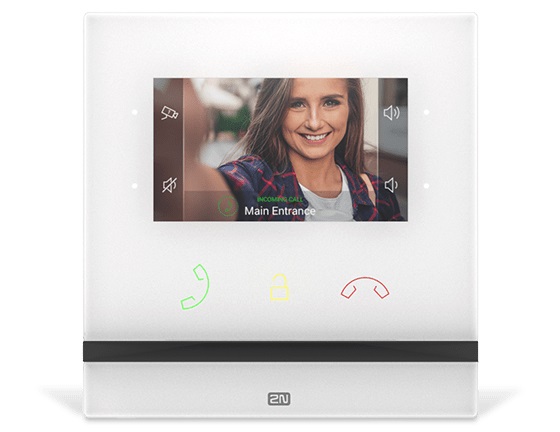

The 2N® Indoor Compact is an indoor answering unit designed especially for the residential market. Installation by connecting a single UTP cable and configuration via a web interface guarantees that integrators can put the unit into operation quickly and easily. Users will be impressed by the minimalist design, tempered glass surface, 4.3″ colour display and intuitive controls. A simply elegant solution for video communication
Power Supply
- Type: 12V DC adapter or PoE 802.3af
- Recommended power supply: 12V/1A
- Reverse polarity protection: yes
User Interface
- Controls: 7 capacitive buttons with RGB LED backlight
- Display size: 4.3″ colour display
- Resolution: 480x272px
Audio
- Microphone: integrated
- Speaker: integrated, 2W
- Induction loop output: 600mV RMS
- Codecs: G.711, G.729, G.722, L16/16kHz
Video
- Codecs: H.264, H.263, MJPEG
Interface
- LAN: 10/100BaseT, RJ-45
- Recommended cabling: Cat5e or higher
Doorbell Input
- Input type: switching contact (button/relay)
- Contact type: normally open (NO)
- Contact parameters: up to 50V/5mA, DC
Mechanical Parameters
- Dimensions (W x H x D): 152 x 153 x 50mm
- Weight: 387g
- Operating temperature: 0 to 50°C
- Relative operating humidity: 10 to 90% (non-condensing)
- Storage temperature: -20 to 70°C
- Recommended altitude: 0 to 2000m
| Manufacturer | 2N |
