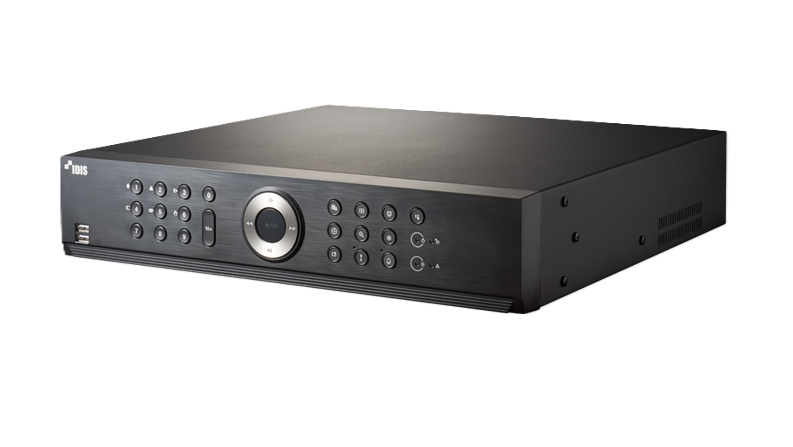

TR-4508R 8 channels, 5MP DirectCX, H.265, 4 SATA, 1HDMI, 1VGA, 1BNC, NDAA
- Video Inputs- 8 BNC
- Supported Camera- HD-TVI: 5MP, 4MP, 3MP, 1080P, 720P AHD: 5MP, 4MP, 3MP, 1080P, 720P CVBS: NTSC / PAL
- Video Outputs 1 HDMI, 1 VGA, 1 BNC(Spot)
- Display Resolution HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
- HDD SATA x 4, eSATA x 1, RAID 1 Supported
- Client Connection Gigabit Ethernet x1
- Transmission Speed 30ips@Full HD per channel, same as recording stream
- Event Notification Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile)
- Two-way Audio Yes
- Audio In / Out 4 RCA / 1 RCA + 1 HDMI
- Alarm In / Out 8 In / 4 Relay Out
- Alarm Reset In Yes
- Serial Interface RS232, RS485 (Terminal Block)
- USB USB 2.0 x 2, USB 3.0 x 1
More information and user manuals can be found in the "Downloads" section.
| Manufacturer | IDIS |
Home delivery (recommended)
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
TR-4508R 8 channels, 5MP DirectCX, H.265, 4 SATA, 1HDMI, 1VGA, 1BNC, NDAA
- Video Inputs- 8 BNC
- Supported Camera- HD-TVI: 5MP, 4MP, 3MP, 1080P, 720P AHD: 5MP, 4MP, 3MP, 1080P, 720P CVBS: NTSC / PAL
- Video Outputs 1 HDMI, 1 VGA, 1 BNC(Spot)
- Display Resolution HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
- HDD SATA x 4, eSATA x 1, RAID 1 Supported
- Client Connection Gigabit Ethernet x1
- Transmission Speed 30ips@Full HD per channel, same as recording stream
- Event Notification Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile)
- Two-way Audio Yes
- Audio In / Out 4 RCA / 1 RCA + 1 HDMI
- Alarm In / Out 8 In / 4 Relay Out
- Alarm Reset In Yes
- Serial Interface RS232, RS485 (Terminal Block)
- USB USB 2.0 x 2, USB 3.0 x 1
More information and user manuals can be found in the "Downloads" section.
| Manufacturer | IDIS |
