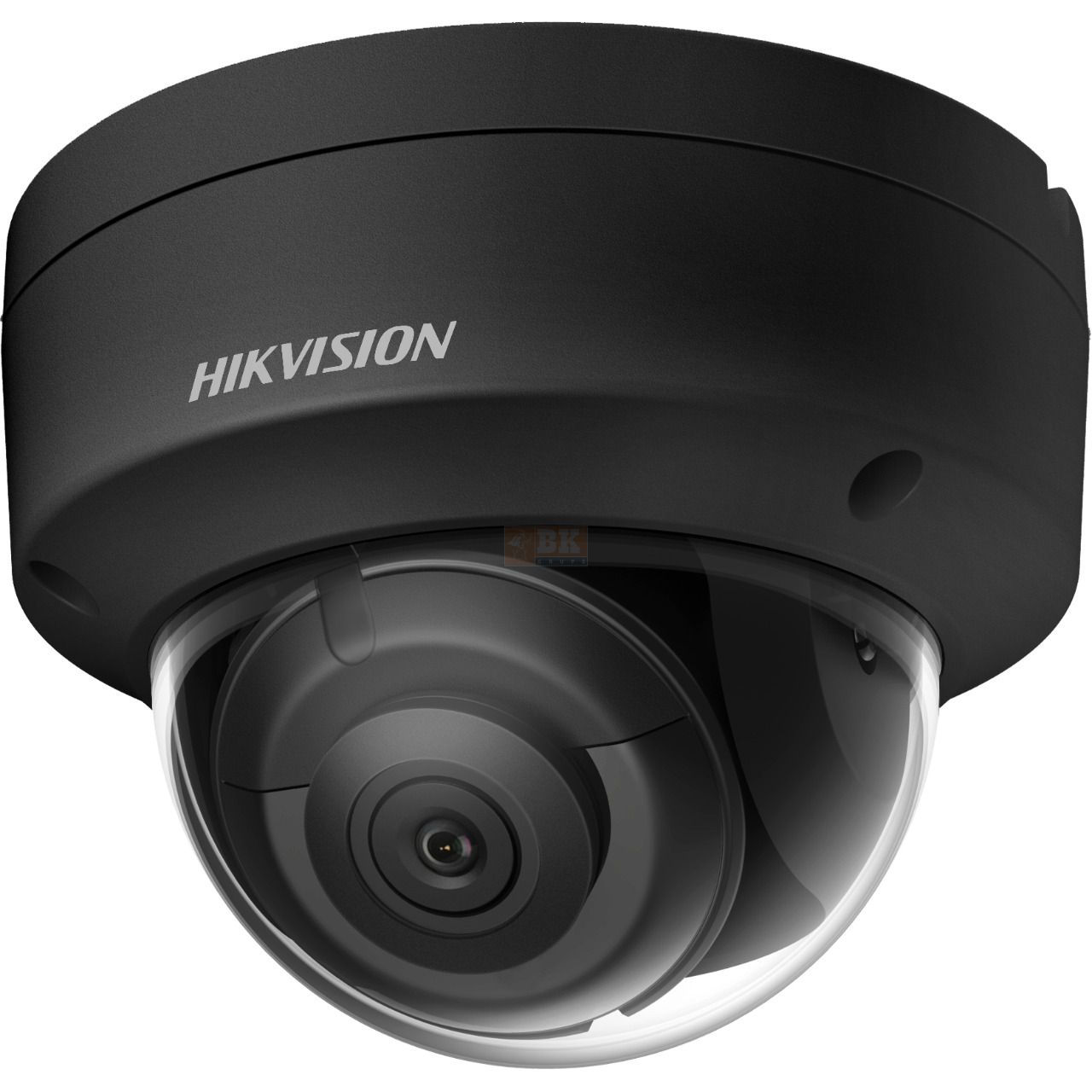

DS-2CD1143G2-I F2.8, 4MPix, BLACK DOME IP camera, 2.8mm (~98°), IR illumination up to 30m, IP67, PoE

Key features

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Clear imaging even with strong back lighting due to 120 dB
• WDR
• Efficient H.265+ compression technology
• EXIR 2.0: advanced infrared technology with long IR range

Specifications

Camera:

• Image Sensor - 1/3" Progressive Scan CMOS
• Max. Resolution - 2560 × 1440
• Shutter Time - 1/3 s to 1/100,000 s
• Min. Illumination - Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Day & Night - IR cut filter
• Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 75°

Lens:

• Lens Type - Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV - 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°;     4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
• Lens Mount  - M12
• Iris Type - Fixed
• Aperture - F2.0

DORI:

• Dori - 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m;   4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator:

• Supplement Light Type  - IR
• Supplement Light Range - Up to 30 m
• Supplement Light Light - Yes
• IR Wavelentgh - 850nm

Video:

• Main Stream - 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720);   60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream - 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression - Main stream: H.265+/H.265/H.264+/H.264;   Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate - 32 Kbps to 8 Mbps
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.265 Type - Main Profile
• Bit Rate Control - CBR/VBR
• Region of Interest (ROI) - 1 fixed region for main stream

Network:

• Security - Password protection, complicated password, watermark, IP address filter, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View - Up to 6 channels
• API - Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
• Protocols - TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host - Up to 32 users, it can be 3 levels: administrator, operator and user
• Client - iVMS-4200, Hik-Connect
• Web Browser - Plug-in required live view: IE 10, IE 11;    Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Wide Dynamic Range (WDR) - 120 dB
• SNR - ≥ 52 dB
• Day/Night Switch - Day, Night, Auto, Schedule
• Image Enhancement - BLC, HLC, 3D DNR
• Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask - 4 programmable polygon privacy masks

Interface:

• Ethernet Interface - 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event:

• Basic Event - Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage - Upload to FTP, send email, notify surveillance center, trigger capture

General:

• Power - 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug;   PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material - Metal & Plastic
• Dimension - Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
• Weight - 520g
• Startup and Operating Conditions - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language - English, Ukrainian
• General Function - Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval:

• EMC - FCC: 47 CFR Part 15, Subpart B;   CE-EMC: EN 55032: 2015, EN;    61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN;   50130-4: 2011 +A1: 2014;   RCM: AS/NZS CISPR 32: 2015;   IC: ICES-003: Issue 7;   KC: KN32: 2015, KN35: 2015
• Safety - UL: UL 62368-1;   CB: IEC 62368-1: 2014+A11;   CE-LVD: EN 62368-1: 2014/A11: 2017;   BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment - CE-RoHS: 2011/65/EU;  WEEE: 2012/19/EU;  Reach: Regulation (EC) No 1907/2006
• Protection - IP67: IEC 60529-2013;  IK10: IEC 62262: 2002
