DS-2CD2363g2-IU F2.8 6MPix DOME IP camera, integrated microphone, IR illumination up to 30m, IP66, P

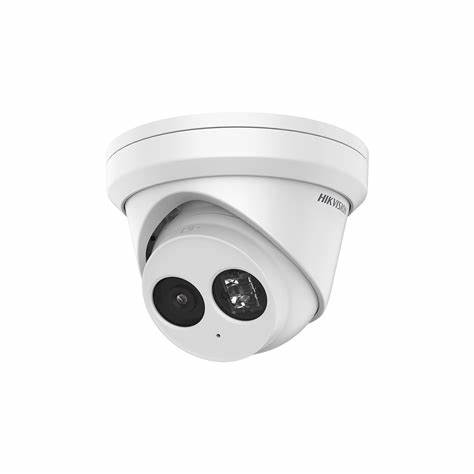

6 MP AcuSense Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security Water and dust resistant (IP67)

• Image Sensor 1/2.8" Progressive Scan CMOS
• Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Max.
• Resolution 3200 × 1800 Lens

Lens

• Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Iris Type Fixed
• Aperture F1.6
• Lens Mount M12

DORI

DORI 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

Illuminator

• Supplement Light Type IR
• Smart Supplement Light Yes
• IR Wavelength 850 nm
• Supplement Light Range Up to 30 m

Video

• Main Stream 50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Video Compression Main stream: H.265/H.264+/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC) H.264 and H.265 encodin
• Region Of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio

• Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering -U: Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP, RTCP
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch - Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• SNR ≥ 52 dB Wide Dynamic Range (WDR) 120 dB
• Privacy Mask 4 programmable polygon privacy masks

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-In Microphone -U: yes
• On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key Yes

Event

• Basic Event - Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event - Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection
• Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General

• Material Aluminum alloy body Dimension Ø127.3 mm × 95.9 mm (Ø5.0 × 3.8\")"
• Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight Approx. 600 g (1.3 lb.)
• With Package Weight Approx. 909 g (2 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing
• Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function - Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

Approval

• EMC - FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection - IP67 (IEC 60529-2013)
