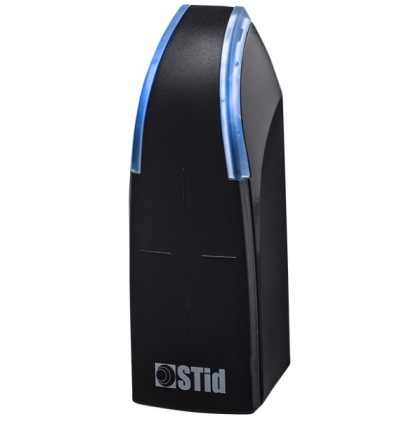

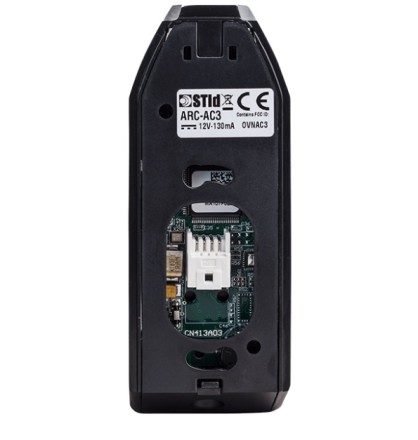

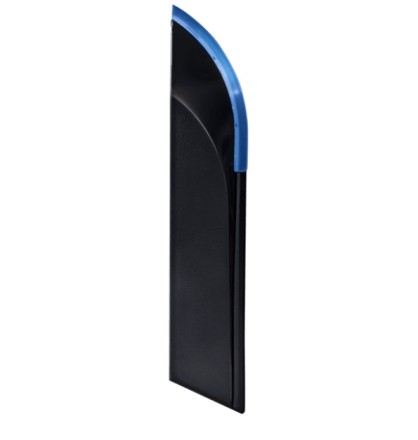

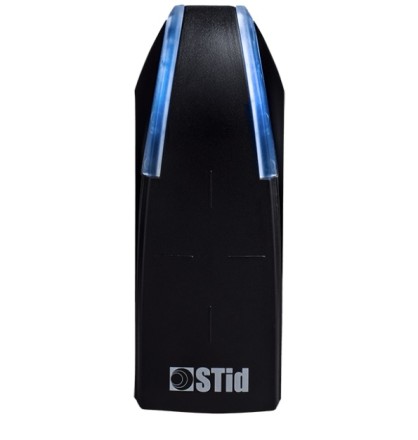

STid ARC1-B/PH5 Card Reader
Mifare Desfire EV1,EV2,EV3, NFC, Wiegand, IK10, IP65, STid
- Frequency: 13.56 MHz
- Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe)
- Chip: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential)
- Functions: CSN, pre-configured (PC2 - Easyline), secure (file, sector) read-only and secure protocol (Secure Plus) / Secure read-write
- Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
- Reading distances: 0 - 6 cm
- Power supply: 9 - 15 VDC / Consumption : 130 mA/12 VDC max
- Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
- Color: Black or White - Many cover customization options
- Dimensions (h x w x d): 110 x 42 x 22 mm
- Operating temperatures: - 30°C to + 70°C
- Protection: reinforced IK10 certified vandal proof structure / Accelerometer-based tamper detection system
- Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%
More information and user manuals can be found in the "Downloads" section.
