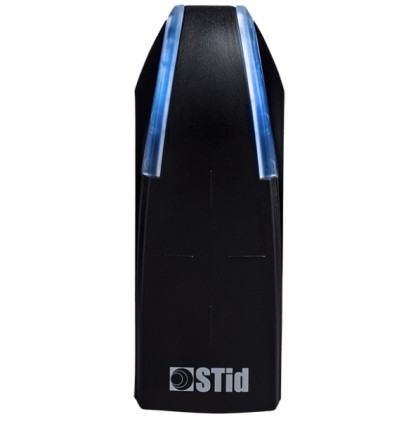

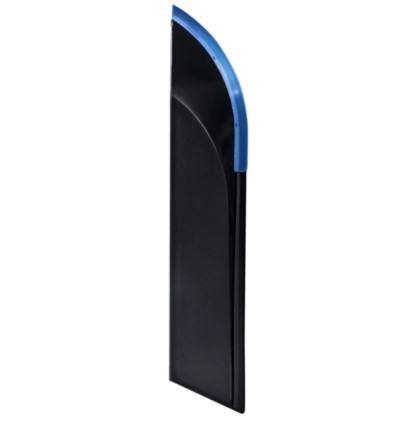

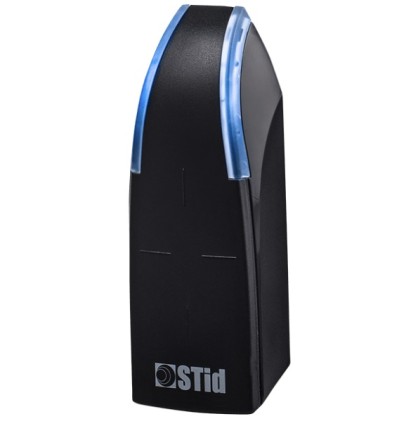

STID ARC1S/BT - 13.56 MHz DESFire® EV3 + Bluetooth® mullion reader
Bluetooth, Mifare Desfire EV1,EV2,EV3, NFC, OSDP, IK10, IP65, STid
Compatible with all access control systems, Architect® One Blue is an extremely compact reader for RFID cards and Bluetooth® & NFC smartphones for mounting on narrow surfaces.
Short specification:
- Operating frequency / Standards - 13.56 MHz: ISO14443 types A & B, ISO18092, Bluetooth®
- Chip Compatibilities - MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 , & EV3, CPS3, NFC (HCE), PicoPass® (CSN only), iCLASS™ (CSN only*). STid Mobile ID® (NFC and Bluetooth® virtual card), Orange Pack ID
- Reading distances - Up to 6 cm / 2.36’’ with a MIFARE® DESFire® EV2 card. Up to 20 m / 65.6 ft with a Bluetooth® smartphone (adjustable distances on each reader)
- Consumption / Power supply - 150 mA/12 VDC Max - 9 VDC to 15 VDC
- Protection / Resistance IP65 level - Tropicalized electronics according to standard CEI NF EN 61086 - Weather, water and dust resistant / Humidity: 0 - 95% / IK10 certified vandal-proof reinforced structure
| Manufacturer | STid |
Home delivery (recommended)
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
STID ARC1S/BT - 13.56 MHz DESFire® EV3 + Bluetooth® mullion reader
Bluetooth, Mifare Desfire EV1,EV2,EV3, NFC, OSDP, IK10, IP65, STid
Compatible with all access control systems, Architect® One Blue is an extremely compact reader for RFID cards and Bluetooth® & NFC smartphones for mounting on narrow surfaces.
Short specification:
- Operating frequency / Standards - 13.56 MHz: ISO14443 types A & B, ISO18092, Bluetooth®
- Chip Compatibilities - MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 , & EV3, CPS3, NFC (HCE), PicoPass® (CSN only), iCLASS™ (CSN only*). STid Mobile ID® (NFC and Bluetooth® virtual card), Orange Pack ID
- Reading distances - Up to 6 cm / 2.36’’ with a MIFARE® DESFire® EV2 card. Up to 20 m / 65.6 ft with a Bluetooth® smartphone (adjustable distances on each reader)
- Consumption / Power supply - 150 mA/12 VDC Max - 9 VDC to 15 VDC
- Protection / Resistance IP65 level - Tropicalized electronics according to standard CEI NF EN 61086 - Weather, water and dust resistant / Humidity: 0 - 95% / IK10 certified vandal-proof reinforced structure
| Manufacturer | STid |
Home delivery (recommended)
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
